The material known as FeCrAl Alloy Foil is a high-performance metallic foil composed primarily of iron (Fe), chromium (Cr) and aluminium (Al). It is designed for demanding environments where high temperature stability, oxidation resistance and mechanical durability are required. This article delves into what FeCrAl Alloy Foil is, why it is increasingly chosen in industry, how it is manufactured and applied, and what future trends are shaping its usage. The purpose is to provide a deep, structured overview—structured into four main sections—for professionals evaluating the foil for advanced engineering, energy, catalyst or thermal management applications.

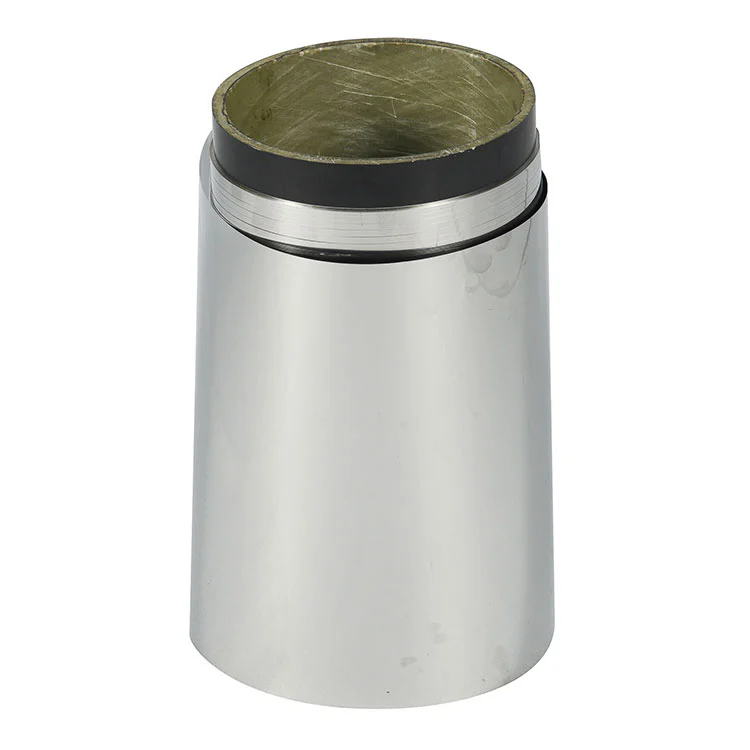

FeCrAl Alloy Foil is a specialized form of ferritic chromium-aluminium steel (or alloy) processed into foil form (thin sheet) for high-temperature and high-performance applications. Its core alloying system—iron with significant chromium and aluminium additions—results in a material that forms a stable alumina (Al₂O₃) protective layer at elevated temperatures, enabling outstanding oxidation and scaling resistance.
Key typical parameters of the foil are shown in the table below:
| Parameter | Typical Value / Range | Notes |
|---|---|---|
| Chemical composition | Fe ~ Balance; Cr ~ 15-22 wt%; Al ~ 4-7 wt% | Alloying for oxidation resistance. |
| Density | ~7.1-7.2 g/cm³ | Slightly lower density vs some Ni‐based alloys. |
| Melting point | ~1 500 °C | High melting enabling high-temperature service. |
| Max continuous service | ~1 300-1 400 °C (for certain grades) | Dependent on alloy grade and environment. |
| Electrical resistivity | ~1.3-1.5 μΩ·m (at 20 °C) | Higher resistivity beneficial for heating applications. |
| Coefficient of thermal expansion | ~11–16 ×10⁻⁶ K⁻¹ | Good match for other metallic structures. |
In foil form, the material is rolled to thin thicknesses (for example 0.03 mm to 0.25 mm or thinner) with tolerances and flatness controlled for high-performance applications.
Because of its unique combination of thermal stability, oxidation resistance and mechanical integrity, FeCrAl alloy foil is being used in sectors such as heating elements, catalyst substrates, exhaust systems, fuel cells, and other advanced thermal/electrical devices.
Outstanding oxidation and high-temperature resistance
FeCrAl alloys form a protective aluminium-oxide (Al₂O₃) scale which adheres to the surface and prevents rapid degradation at high temperatures. This mechanism gives it a major advantage over many conventional alloys in oxidizing, high-temperature environments.
High electrical resistivity and stability
For foil applications in heating or resistive environments, higher resistivity means more compact device design and better control. FeCrAl exhibits higher resistivity compared with many Ni-based heating alloys.
Mechanical and thermal performance
Even at elevated temperature, the foil maintains structural integrity and resists creep, spalling of oxide layers, and fatigue from thermal cycling. Grades tailored for foil form will have low carbon content and rare earth additives (e.g., Y, Zr, La) to enhance scale adherence and fatigue resistance.
Cost-effectiveness and manufacturing friendliness
Compared with certain Ni-based superalloys, FeCrAl foil can offer a lower cost solution while still achieving excellent high-temperature performance. Also the foil form makes it more easily integrated into layered structures, catalytic substrates, or compact heating modules.
Multi-application flexibility
Because of its properties, the foil can serve as:
Substrate for metallic catalysts in exhaust or chemical reactors.
Heating element foil for furnaces, heaters, ceramic hobs.
Structural foil in high-temperature assemblies (aerospace, nuclear) or sensor/hydrogen systems.
Manufacturing process
Alloy melting and casting – Raw materials (Fe, Cr, Al, minor rare earth/zirconium/yttrium) are melted, refined (often double slag refining) to reduce unwanted elements (C, S, P) and ensure purity.
Hot rolling and cold rolling – The cast ingot is hot rolled to sheet/strip, then cold-rolled to foil thicknesses (for example 0.03 mm to 0.25 mm) with tight tolerances. At very thin foil (<0.1 mm) special flatness and wave control are required.
Heat treatment/annealing – Depending on desired hardness/softness, foil may be annealed to achieve required ductility or mechanical properties. For hard foils, minimal annealing may be applied.
Surface treatment and inspection – Surface flatness, edge wave, thickness tolerance, and oxide scale formation are checked. Flatness and edge wave tolerances might be specified (for example flatness <7 mm per 1m, for certain thicknesses).
Application process
Forming and integration: The foil can be formed (cut, bent, stamped) into components such as heater elements, catalytic substrate layers, or foil-based assemblies. For example, in catalytic converters the foil may be used as a metallic substrate on which washcoats or catalysts are deposited.
Installation in the system: In heater applications, the foil is incorporated into the heating element assembly, ensuring thermal contact, secure mounting, and electrical connection. In chemical/industrial reactor environments, the foil must operate under repeated thermal cycles and exposure to gases—so the mounting must allow for expansion, contraction, and oxidation scaling.
Operational environment: The foil’s design must match the service temperature, mechanical loads (vibrations, thermal fatigue), and corrosion/oxidation environment (e.g., exposure to steam, exhaust gases, sulphur compounds). Proper selection of grade and foil thickness is critical.
Maintenance and lifecycle: Monitoring of oxidation scale integrity, foil dimensional stability, and mechanical integrity (e.g., no cracks, spalls) is necessary to ensure long service life.
Implementation best-practices
Ensure correct grade selection based on maximum operating temperature and environment (select a grade with proven high-temperature tolerance if >1300 °C).
Control foil thickness and tolerances; thinner foils allow quicker thermal response but may be more susceptible to mechanical damage.
Provide room for thermal expansion and avoid rigid mounting that may cause foil buckling or cracking.
In catalyst substrate use, ensure proper adhesion of catalytic washcoat and compatibility of foil surface finish.
In heating applications, ensure the foil’s electrical connection and insulation design account for the higher resistivity and thermal cycles.
Trend – Shift to cleaner energy and hydrogen systems
As industries push toward clean energy, hydrogen generation, fuel cell systems, and advanced thermal management, materials able to withstand high temperatures, corrosive gases and cyclic loads are in demand. FeCrAl foil’s properties make it an excellent candidate for such applications. For example, recent studies show FeCrAl alloys being evaluated for nuclear (accident tolerant fuel cladding) and steam-exposed environments.
Trend – Miniaturisation and high‐power density systems
With electronic, aerospace and automotive applications demanding thinner, lighter, higher-performance foil components (for heating, sensors, substrates), foil forms of high-end alloys like FeCrAl are gaining traction. The foil plays well in layered/compact designs, allowing faster thermal response and lighter weight.
Trend – Advanced manufacturing and customization
Manufacturers are pushing the envelope with finer foil thicknesses, customised alloying (low carbon, rare earth additions) and improved rolling/annealing processes to enhance fatigue, creep and oxidation resistance. For example, development of oxide-dispersion-strengthened (ODS) FeCrAl alloys shows how strength and ductility can be improved.
Opportunity – Catalyst substrates and emission control
In the exhaust and chemical processing sectors, metallic foils that act as substrate for catalysts are increasingly used in place of ceramic honeycombs for weight, strength and thermal shock advantages. FeCrAl foil with its oxidation resistance and mechanical durability fits this emerging use case very well.
Opportunity – Lifecycle & sustainability
Longer lifespan and lower failure rates of equipment using FeCrAl foil reduce downtime and maintenance costs. In systems where replacement is costly (aerospace, power plants), the availability of foil forms that can resist high-temperature cycles and harsh gases is an economically and environmentally beneficial trend.
Frequently Asked Questions (FAQ)
Q1: What environments is FeCrAl Alloy Foil suitable for?
A1: FeCrAl alloy foil is suitable for environments where high temperature (often above 1 000 °C) oxidation, thermal cycling, and mechanical stability are required. It is especially effective in oxidizing atmospheres, furnace or heater elements, catalytic substrates in exhaust systems, and components in high-temperature chemical or energy systems. Because the alloy forms protective alumina scales, it resists degradation in high-temperature air and certain corrosive atmospheres.
Q2: How does the foil thickness affect performance and selection?
A2: The foil thickness of FeCrAl alloy impacts mechanical flexibility, thermal response, and formability. Thinner foils (for example <0.1 mm) allow faster thermal cycling response, enable compact assemblies, and can be formed into complex geometries. However, they may demand stricter control of flatness, edge wave, and surface finish. Thicker foils provide better mechanical strength, but slower thermal dynamics and may limit forming. During selection, the operating temperature, thermal cycles, mechanical loads and assembly method must all be considered to pick the optimal thickness. Manufacturing tolerances and surface treatments are also critical to ensure long-term reliability.
Conclusion
In summary, FeCrAl Alloy Foil stands out as a high-performance material solution for challenging high-temperature, high-cycle, oxidation-prone environments. Its unique alloy composition, manufacturing flexibility into thin foil form, and ability to combine thermal stability, oxidation resistance and mechanical integrity make it a compelling choice across sectors from heating systems and catalytic substrates to aerospace, energy and advanced manufacturing.
Looking ahead, trends such as the growth of hydrogen systems, miniaturised high-power devices, metallic catalyst substrate technology and lifecycle-driven manufacturing will further drive demand and innovation in FeCrAl foil form. For organisations seeking high reliability, longer lifespan and advanced performance in extreme environments, integrating FeCrAl foil into design and component strategy can provide significant value.
At Ningbo Huali Steel Co., Ltd., a specialised manufacturer in advanced metallic foil and alloy solutions, the commitment is to deliver tailored FeCrAl alloy foil with controlled chemistry, precise foil thickness and high-quality manufacturing standards. For more information on how this foil can meet your application requirements, contact us.
