Ningbo Huali Steel Co., Ltd is a manufacturer producing the Grade 1 Titanium Alloy Coil in southeast China. We produce grade 1 and grade 2 Titanium coils/strips/foils with competitive price and high quality.

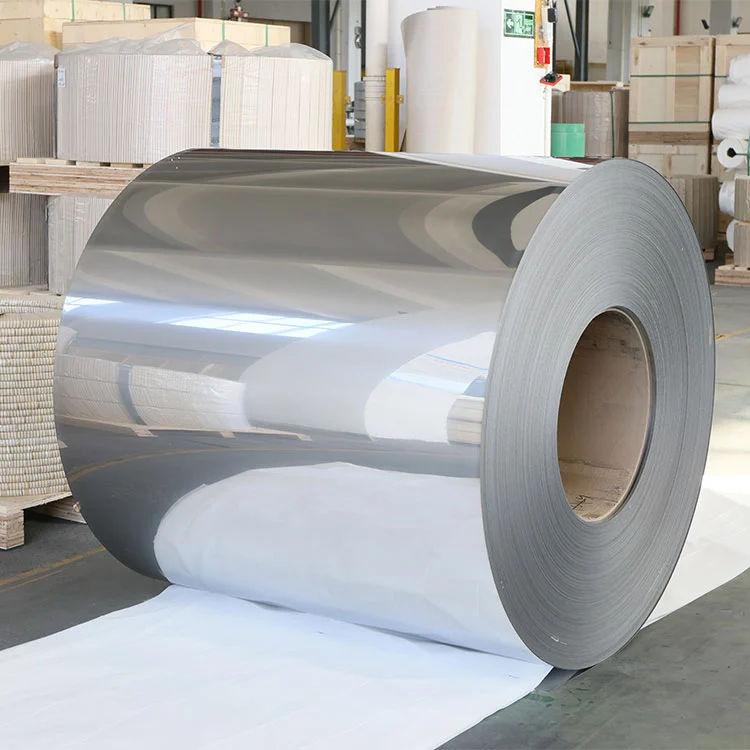

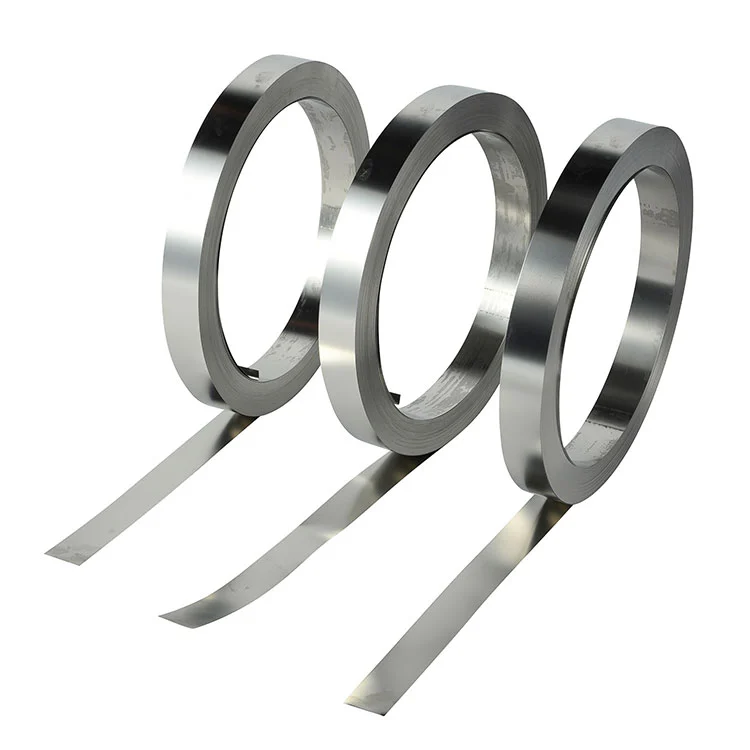

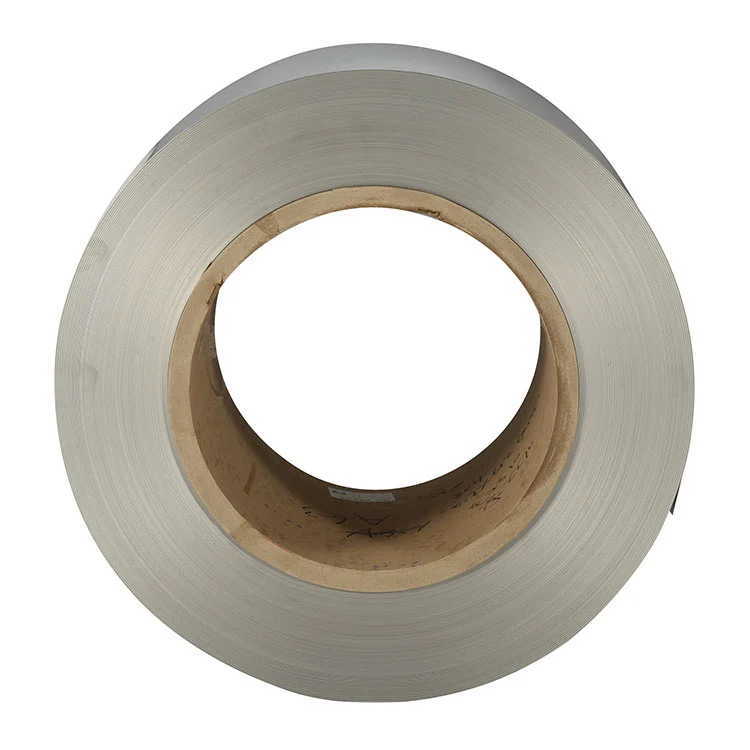

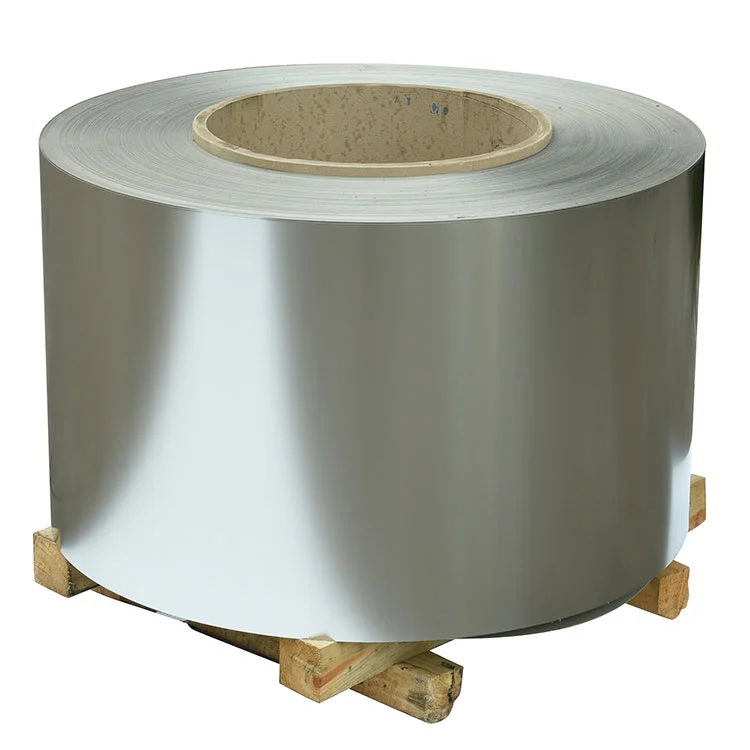

Grade 1 Titanium Alloy Coil refers to titanium plates, strips, coils or sheets with a thickness of less than or equal to 0.1mm. Its width can be cut according to user needs, but the maximum width of rolled titanium foil is usually about 600mm. In addition to thickness, the specifications of titanium foil can also be measured by weight per unit area, such as g/m² or oz/ft², etc. The larger the value, the greater the thickness.
| GRADE | Chemical Composition | ||||||
| Fe | O | N | C | H | Other Elements | Ti | |
| % | % | % | % | % | % | % | |
| Grade 1 | ≤0.15 | ≤0.12 | ≤0.05 | ≤0.06 | ≤0.013 | ≤0.40 | Balance |

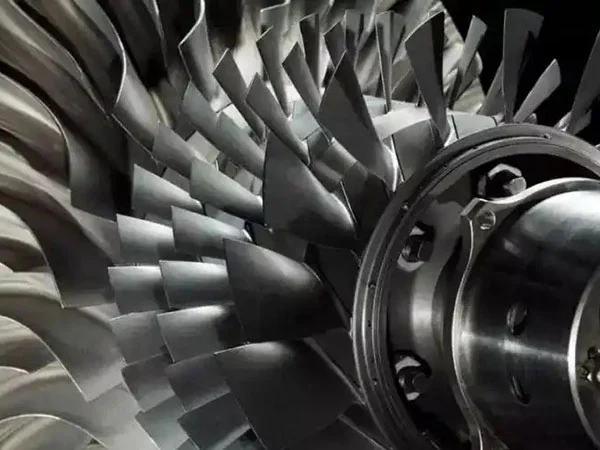

High strength: Grade 1 Titanium Coil has a better strength-to-density ratio than other metals, so it can be made into components with high strength, good rigidity and light weight. This makes titanium foil widely used in aerospace, navigation, nuclear power and other fields, such as aircraft engines, frames, skins, fasteners and landing gear.
Excellent corrosion resistance:Grade 1 Titanium Coil are more resistant to corrosion in humid air and seawater than stainless steel. Titanium has a great ability to resist pitting corrosion, acid corrosion and stress corrosion, and can resist corrosion from alkalis, chlorides, chlorinated organics, sulfuric acid, nitric acid and other substances.
High and low temperature resistance: The application temperature of titanium is higher than that of aluminum alloys, and it can work for a long time at 450~500℃. At the same time, titanium alloys can still maintain their mechanical properties under low or ultra-low temperature conditions, so they are a good low-temperature structural material.
Applications:
Grade 1 Titanium Coil is roughly equivalent to some specific titanium alloy materials with similar properties. It is widely used in aerospace, marine engineering, chemical industry, and many other fields. It is a rare high-quality metal material.
Grade 1 Titanium Coil Tensile and Yield Strength: Titanium Grade 1 has a minimum tensile strength of approximately 240 MPa and a yield strength of approximately 170 MPa, representing the softest grade of titanium. Its excellent ductility enables it to stretch up to 24%, making this grade suitable for applications that require flexibility rather than maximum strength.
Lightweight: Although the material is lower in strength, its density is only 4.51 g/cm³, making it much lighter than steel. The combination of lightness and adequate durability makes the material an ideal choice for industries that want to reduce weight without sacrificing safety or reliability.
Certificates: ISO9001, SGS, MTC...
